Sinter Bar

Rod (2) Request a Quote

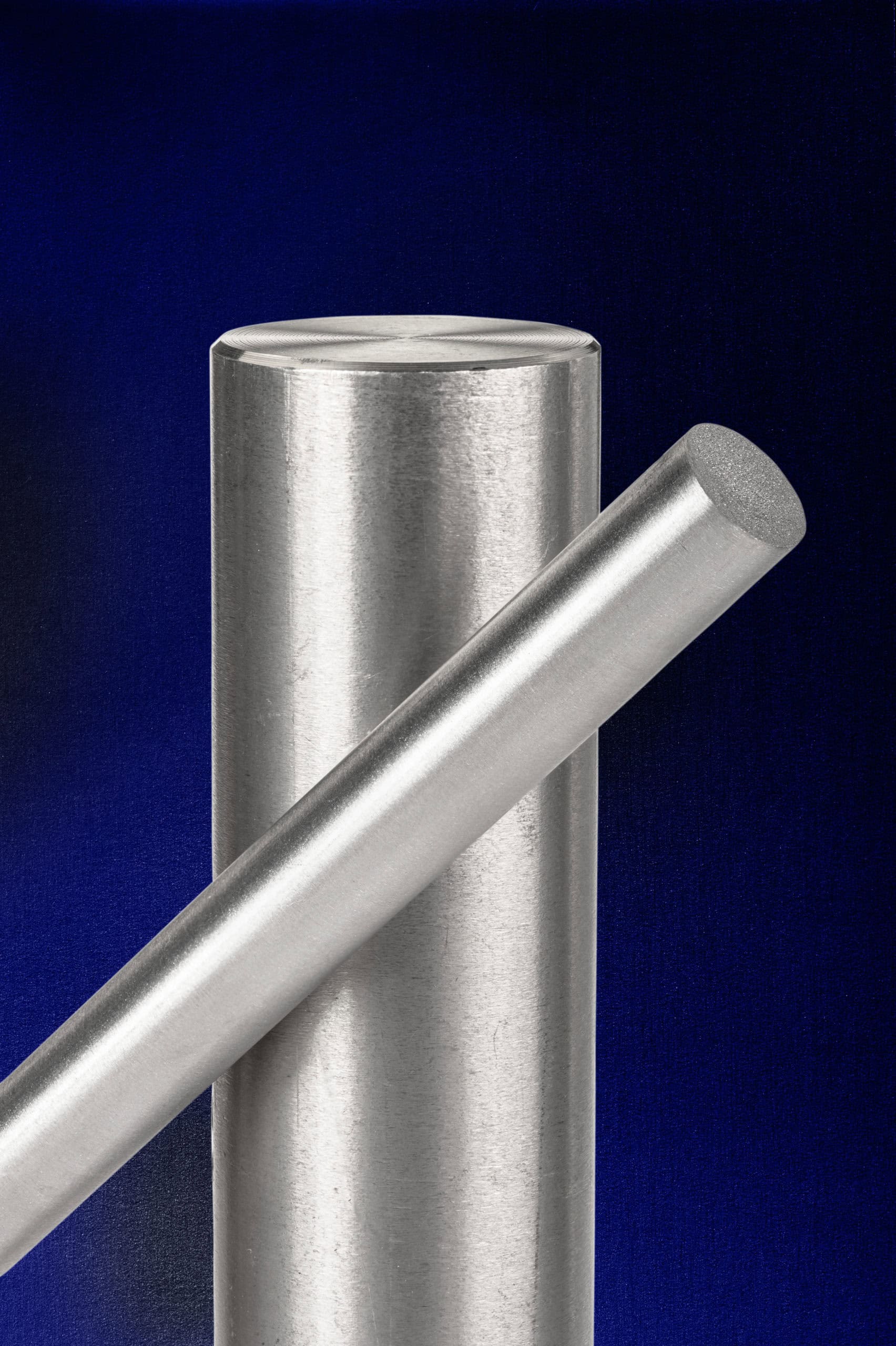

Tantalum Sinter Bar from Powder Metallurgy Consolidation
For re-draw to sheets and wires.
The product is also perfect for alloy applications.


View our Standard Products

Chemical Specification: ppm max

Element Grade 1 Grade 2
Al 5 5
C 30 50
Ca 10 10
Cr 15 30
Ag 1 5
Mg 5 5
Fe 15 30
H 10 30
Mn 5 10
As 1 5

Chemical Specification: Continued

Element Grade 1 Grade 2
Mo 5 10
N 10 100
Nb 10 30
Ni 15 30
Cd 1 5
O 100 250
Si 20 20
W 5 20
Pb 1 5

Diameter (mm) for Tantalum Sinter Bar

Diameter 22 – 30 mm 22 – 30 mm
Maximum Length 550 mm 550 mm
Minimum Density 15.8 g/cc 15.5 g/cc
